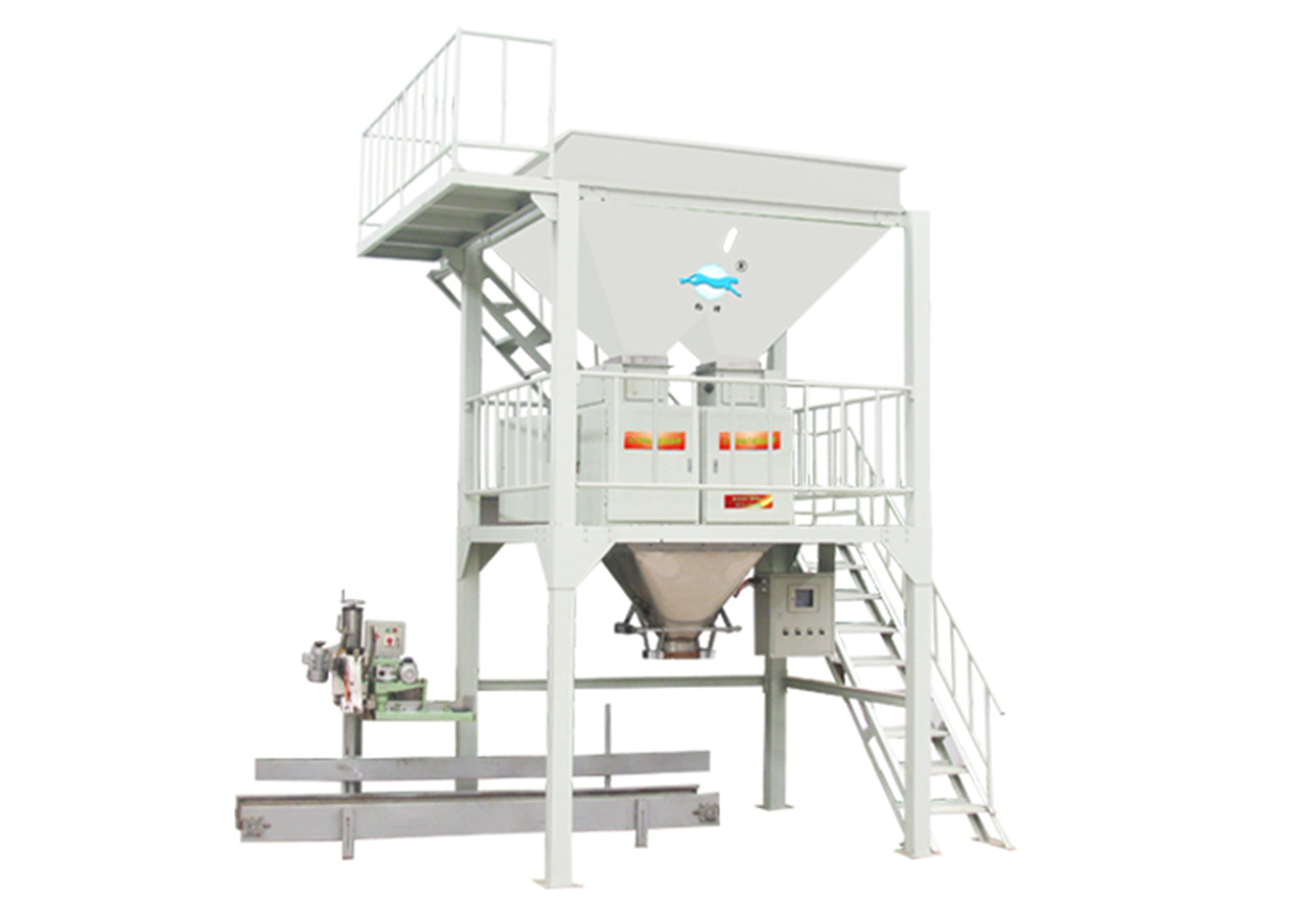

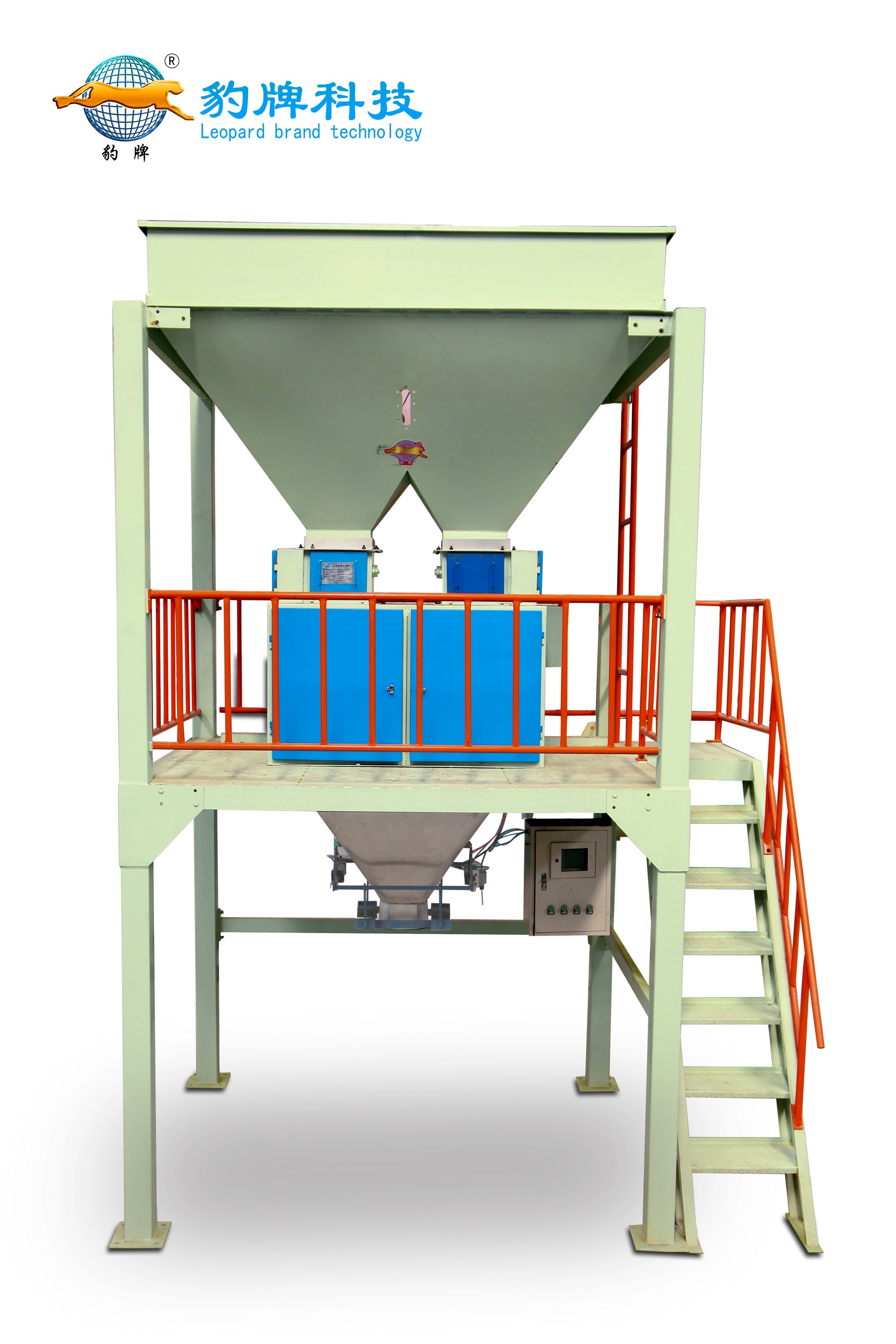

The DCS-50 series packaging scale is a meticulously designed metering and packaging system specifically for the fertilizer packaging industry. The product uses a closed-loop control algorithm combined with industry-specific weighing instruments and has undergone special anti-corrosion treatment. It is widely used by major fertilizer manufacturing companies and is highly praised by customers.
Product Features:
· Robust hardware support with multiple weighing options available.
· Human-machine interface for setting and modifying process parameters, simplifying complex instrument menus.
· Advanced control algorithm program ensuring stable and high-speed metering.
· Special anti-corrosion treatment with various material options.
· Unique feed gate drive scheme for fast and accurate execution.
Weighing Range |
Maximum Speed |
Measurement Accuracy |
Origin Pressure |
Rated Power |
Working Environment |
Relative Humidity |
Working Power |
Insulation Resistance |
Leakage Current |
25-50kg |
800 bags/hour |
×(0.2) grade |
0.5-0.7 MPa |
200 w/h |
-10%-40% |
≤90% |
AC220V±10% 50Hz |
>500M |
≤10mA |
