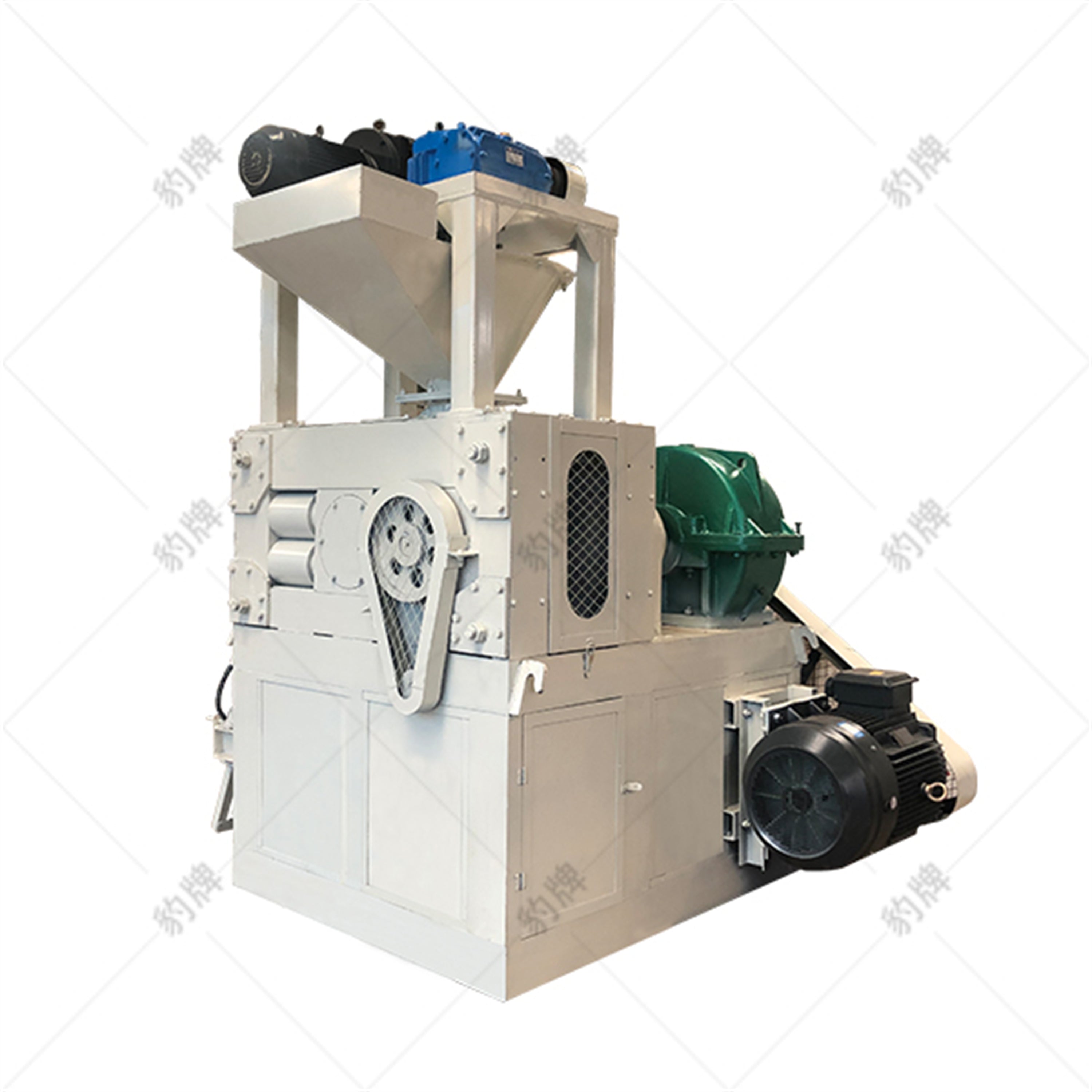

The GYD series roller press granulator, developed using German technology, is designed for large particle granulation production processes. It is manufactured using special materials selected based on the characteristics of different raw materials, and the die holes can be customized according to user requirements.
This model features wide adaptability, a compact structure, high single machine capacity, high finished product rate, low power consumption, and easy operation and maintenance.
The product granules are dense, spherical or ellipsoidal, with the ability to control the release of fertilizer nutrients. The release rate matches the growth rate of crops, significantly improving fertilizer utilization, reducing agricultural costs, and mitigating environmental pollution caused by soil nutrient loss. This fertilizer can be used for full-layer soil fertilization, furrow application, or hole application, optimizing the effectiveness of various plant nutrients in the soil micro-ecological region, providing long-term fertilizer efficacy, and enhancing the safety and quality of crops.
Scope of Application: This machine is suitable for granulation of dry powder compound fertilizer, powdered limestone, magnesium oxide powder, copper concentrate, chrome concentrate, lead-zinc waste, bauxite, non-ferrous metal powder, coal powder, charcoal powder, powdered refractory materials, powdered ceramic materials, and other materials.
Model |
Output (T/h) |
Roller Diameter (mm) |
Power (Kw) |
Granule Diameter (mm) |
Material Moisture (%) |
GYD3620 |
3-5 |
360 |
37 |
30-45 |
1-3 |
GYD3624 |
3-5 |
520 |
7.5 |
30-45 |
1-3 |
GYD5214 |
3-5 |
750 |
22 |
30-45 |
1-3 |
